JNM Series Capsule Filters

JNM Series Capsule Filters

The JNM series capsule filter features a housing made of flexible polypropylene and a filter element with an M-style pleated structure. It utilizes imported drainage and support materials, manufactured through heat-melt welding without any adhesives. Different membrane materials and pore sizes can be selected according to customer requirements. It is safe to use and easy to operate, making it suitable for low-flow liquid or gas filtration.

Features and Advantages

1.Optional filter membrane materials and connection types

2.Equipped with a vent port to prevent residual retention

3.Flexible polypropylene housing with high mechanical fatigue resistance

4.Safe and user-friendly operation

5.Broad chemical compatibility

6.Heat-melt welded, free of adhesives

7.100% integrity tested

8.Rinsed with pure water, no media shedding

Application Fields

1.Gas sterilization filtration

2.Ultrapure water terminal filtration

3.Chemical reagent filtration

4.Adhesive filtration

5.Corrosive liquid filtration

6.Ink and dye filtration

7.Culture medium and pharmaceutical solution filtration

8.Biological product filtration

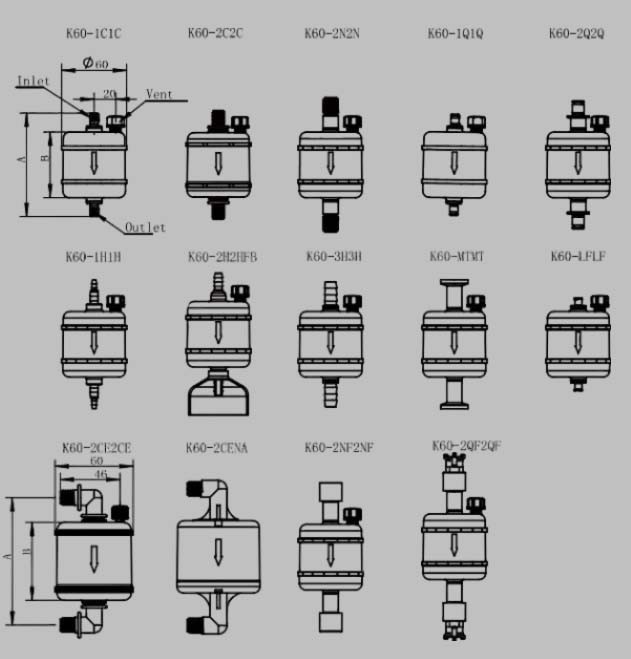

Specifications

Operating Parameters
